OpenCV判断颜色相似图片：基于直方图均衡化的BGR通道相似度计算

import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt


def create_rgb_hist(image):
  """"创建 RGB 三通道直方图（直方图矩阵）"""
  h, w, c = image.shape
  # 创建一个（16*16*16,1）的初始矩阵，作为直方图矩阵
  # 16*16*16的意思为三通道每通道有16个bins
  rgbhist = np.zeros([16 * 16 * 16, 1], np.float32)
  bsize = 256 / 16
  for row in range(h):
    for col in range(w):
      b = image[row, col, 0]
      g = image[row, col, 1]
      r = image[row, col, 2]
      # 人为构建直方图矩阵的索引，该索引是通过每一个像素点的三通道值进行构建
      index = int(b / bsize) * 16 * 16 + int(g / bsize) * 16 + int(r / bsize)
      # 该处形成的矩阵即为直方图矩阵
      rgbhist[int(index), 0] += 1
  plt.ylim([0, 10000])
  plt.grid(color='r', linestyle='--', linewidth=0.5, alpha=0.3)
  return rgbhist


def hist_compare(hist1, hist2):
  """直方图比较函数"""
  '''# 创建第一幅图的rgb三通道直方图（直方图矩阵）
  hist1 = create_rgb_hist(image1)
  # 创建第二幅图的rgb三通道直方图（直方图矩阵）
  hist2 = create_rgb_hist(image2)'''
  # 进行三种方式的直方图比较
  match1 = cv.compareHist(hist1, hist2, cv.HISTCMP_BHATTACHARYYA)
  match2 = cv.compareHist(hist1, hist2, cv.HISTCMP_CORREL)
  match3 = cv.compareHist(hist1, hist2, cv.HISTCMP_CHISQR)
  print("巴氏距离：%s, 相关性：%s, 卡方：%s" % (match1, match2, match3))


def handle_img(img):
  img = cv.resize(img, (100, 100))
  img = cv.cvtColor(img, cv.COLOR_BGR2HSV)
  img[:, :, 2] = cv.equalizeHist(img[:, :, 2])
  img = cv.cvtColor(img, cv.COLOR_HSV2BGR)
  return img

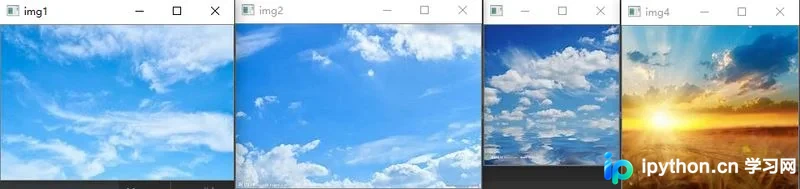

img1 = cv.imread("1.jpg")
img1 = handle_img(img1)
cv.imshow("img1", img1)

img2 = cv.imread("2.jpg")
img2 = handle_img(img2)
cv.imshow("img2", img2)

img3 = cv.imread("3.jpg")
img3 = handle_img(img3)
cv.imshow("img3", img3)

img4 = cv.imread("4.jpg")
img4 = handle_img(img4)
cv.imshow("img4", img4)

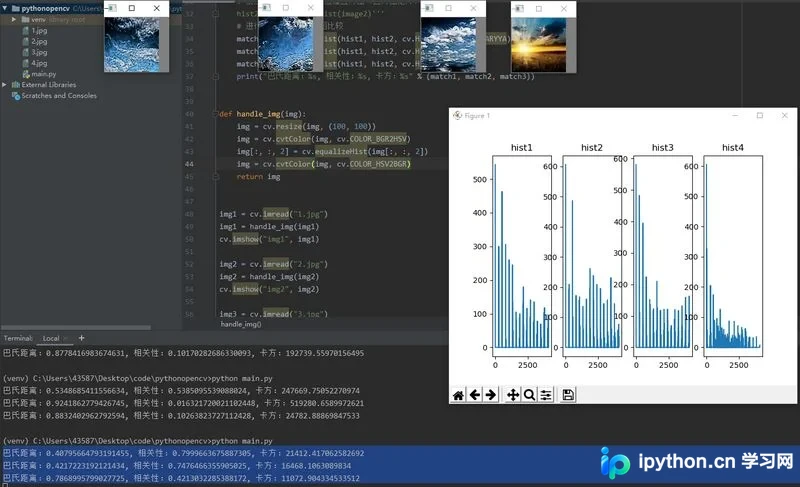

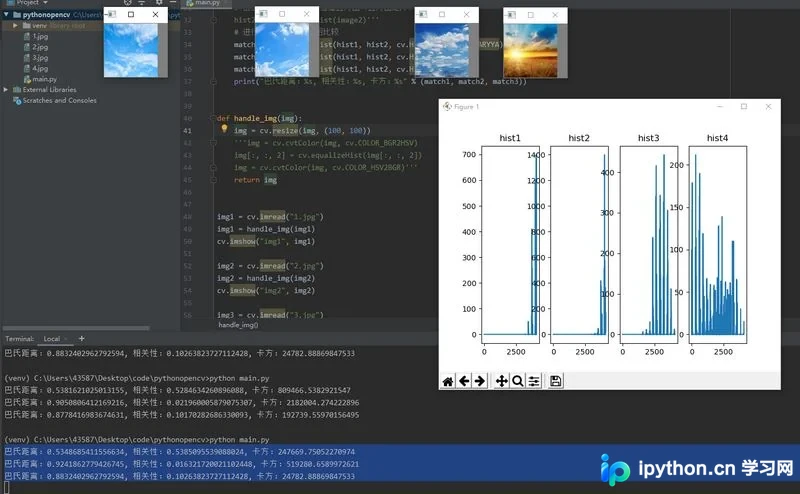

hist1 = create_rgb_hist(img1)
hist2 = create_rgb_hist(img2)
hist3 = create_rgb_hist(img3)
hist4 = create_rgb_hist(img4)

plt.subplot(1, 4, 1)
plt.title("hist1")
plt.plot(hist1)
plt.subplot(1, 4, 2)
plt.title("hist2")
plt.plot(hist2)
plt.subplot(1, 4, 3)
plt.title("hist3")
plt.plot(hist3)
plt.subplot(1, 4, 4)
plt.title("hist4")
plt.plot(hist4)

hist_compare(hist1, hist2)
hist_compare(hist2, hist3)
hist_compare(hist3, hist4)

plt.show()

cv.waitKey(0)
cv.destroyAllWindows()
