Python BeautifulReport 可视化测试报告生成实战指南

Mia
Mia
发布时间:2026-10-13 | 2人浏览过
原创

本文详细介绍如何在Python中使用BeautifulReport库生成可视化的单元测试HTML报告。内容涵盖库文件的下载与安装配置、代码导入方法、测试用例的加载方式(按类或按函数),以及通过BeautifulReport实例化并指定描述、文件名和日志路径来生成最终报告的全过程。附带完整代码示例及控制台输出解析,帮助开发者快速实现测试结果的可视化展示。

BeautifulReport 安装与配置

操作步骤

1. 下载BeautifulReport文件,本例文件下载地址 最新文件下载地址

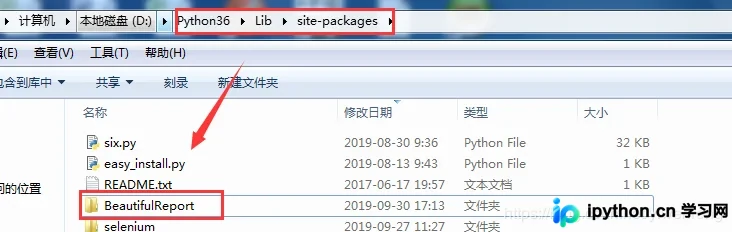

2. 复制文件BeautifulReport,至python安装Lib\site-packages位置下

3.

代码导入与用例描述规范

3. 导入:from BeautifulReport import BeautifulReport import unittest

4. testXXX测试用例函数下可视化报告用例描述:'''描述,第一个测试用例'''

测试用例加载与报告生成流程

5. mian下执行:

1. 实例化:ts = unittest.TestSuite()

2. 按类加载全部testxxx测试用例:ts.addTest(unittest.makeSuite(类名)) 按函数加载testxxx测试用例:ts.addTest(类名(‘函数名'))

3. 加载执行用例生成报告:result = BeautifulReport(ts)

4. 定义报告属性:result.report(description='XXX报告XX描述', filename= 'xxx.html', log_path='C:\Users\EDZ\eclipse-workspace\pythonTest\Report')

完整代码示例与结果解析

举例说明


#!/usr/bin/python3
# encoding:utf-8
'''
Created on 2019年9月30日
@author: EDZ
'''
import unittest
from BeautifulReport import BeautifulReport
import os
import time

class HtmlReport(unittest.TestCase):
  def test_1(self):
    '''描述,第一个测试用例'''
    print('test_1错误')
    self.assertEqual(1, 2)
  def test_2(self):
    '''描述,第二个测试用例'''
    print('test_2正确')
    self.assertEqual(1, 1)
  def test_3(self):
    '''描述,第三个测试用例'''
    print('test_3错误')
    self.assertEqual(2, 3)
if __name__=='__main__':
  now = time.strftime("%Y-%m-%d %H%M%S", time.localtime(time.time()))
  localpath = os.getcwd()
  print('本文件目录位置:'+localpath)
  filepath = os.path.join(localpath,'Report')
  print('报告存放路径  :'+filepath)

  ts = unittest.TestSuite()#实例化
  #按类加载全部testxxx测试用例
  ts.addTest(unittest.makeSuite(HtmlReport))
  #按函数加载testxxx测试用例
  #ts.addTest(HtmlReport('test_1'))
  filename = now +'.html'
  #加载执行用例生成报告
  result = BeautifulReport(ts)
  #定义报告属性
  result.report(description='XXX报告XX描述', filename= filename, log_path=filepath)

控制台运行结果

本文件目录位置:C:\Users\EDZ\eclipse-workspace\pythonTest 报告存放路径 :C:\Users\EDZ\eclipse-workspace\pythonTest\Report F.F 测试已全部完成, 可前往C:\Users\EDZ\eclipse-workspace\pythonTest\Report查询测试报告

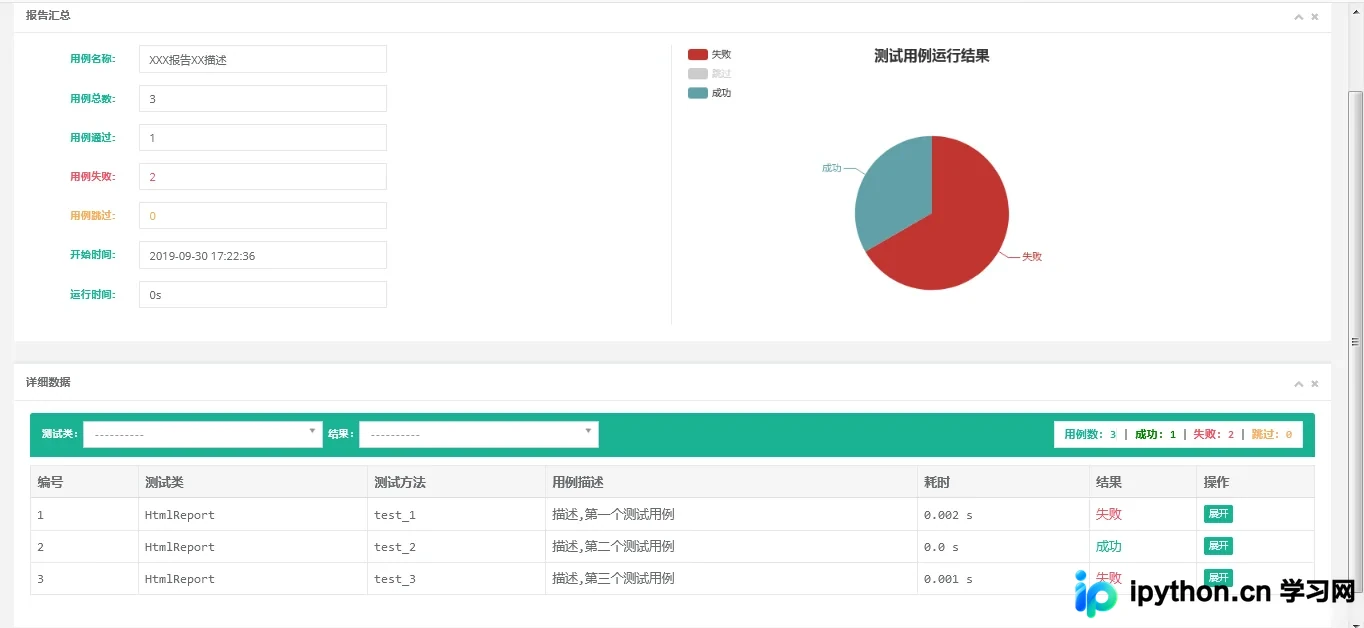

可视化报告

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持本站。
