Python GUI开发实战：使用Tkinter构建界面与PyInstaller打包exe详解

Cora

发布时间：2026-10-15 | 4人浏览过

原创

本文详细介绍如何利用Python的Tkinter库开发图形用户界面，涵盖窗口创建、图片浏览及按钮交互等核心功能实现。同时，深入讲解使用PyInstaller将Python脚本打包为Windows下独立exe可执行文件的全过程，包括安装配置、常用参数解析及常见问题处理，帮助开发者快速完成从代码到独立应用的转换。

一、GUI（图形用户接口）开发基础

首先，需要导入程序运行所需的各类依赖包。


import tkinter as tk
import tkinter.messagebox
import copy
import os

接着，编写逻辑以获取指定文件夹内所有的图片资源。


def get_picture(dirs):
    '''获得所有图片'''
    picture_list = []
    for dir, dir_abs, files in os.walk(dirs):
        for file in files:
            if file.endswith('.png'):  # 注意检查分析数据格式
                picture_list.append(os.path.join(dir, file))
    return picture_list

随后，定义一个名为Window的类来封装窗口相关的状态与行为。


class Window:
    button_list = []
    object_list = []
    pictures = get_picture("F:\\pic\\class-1\\classresnet\\data\\dangerous")
    file = pictures[0]
    is_show = True
    index = 0
    image_file = ''

在类的初始化方法中，创建主窗口及Frame容器，并设置标题与几何尺寸。


    def __init__(self):
        '''创建窗口和frame'''
        self.window = tk.Tk()
        self.window.title('护目镜安全检测')
        self.window.geometry('600x400')
        self.frame = tk.Frame(self.window)
        self.frame.pack()
        self.frame_l = tk.Frame(self.frame)
        self.frame_r = tk.Frame(self.frame)
        self.frame_l.pack(side='left')
        self.frame_r.pack(side='right')
        self.frame_ll = tk.Frame(self.frame_r)
        self.frame_rr = tk.Frame(self.frame_r)
        self.frame_ll.pack(side='left')
        self.frame_rr.pack(side='right')

进一步定义实现翻页功能（如上一页、下一页）及其他交互所需的函数逻辑。


    def next_picture(self):
        '''下一张图片'''
        self.index = self.pictures.index(self.file)
        self.index += 1
        if self.index < len(self.pictures):
            self.checkout_button()
            self.file = self.pictures[self.index]
            self.create_canvas(self.file)
        else:
            self.index = len(self.pictures) - 1
            tkinter.messagebox.showinfo('提示', '已近是最后一张了')

    def checkout_button(self):
        '''判断列表中是否只有button对象'''
        object_list_copy = copy.copy(self.object_list)
        for ob in self.object_list:
            if ob in self.button_list:
                pass
            else:
                b = object_list_copy.pop(self.object_list.index(ob))
                b.destroy()
        self.object_list = object_list_copy

    def pre_picture(self):
        '''上一页'''
        self.index = self.pictures.index(self.file)
        self.index -= 1
        if self.index >= 0:
            self.checkout_button()
            self.file = self.pictures[self.index]
            self.create_canvas(self.file)
        else:
            self.index = 0
            tkinter.messagebox.showinfo('提示', '已经是第一张了')

    def show_picture(self):
        '''展示图片和翻页按钮'''
        self.file = self.pictures[0]
        if self.is_show:
            self.is_show = False
            self.create_canvas(self.file)
            button1 = tk.Button(self.frame_ll, text='上一张', font=('Arial', 12), width=10, height=1, bg='orange',
                                command=self.pre_picture, relief='ridge', )
            button1.pack()
            button2 = tk.Button(self.frame_rr, text='下一张', font=('Arial', 12), width=10, height=1, bg='orange',
                                command=self.next_picture, relief='ridge', )
            button2.pack()
            self.button_list.append(button1)
            self.button_list.append(button2)
            self.object_list.extend(self.button_list)
        else:
            self.is_show = True
            while self.object_list:
                o = self.object_list.pop()
                o.destroy()

最后，实例化按钮与画布组件，并调用主程序运行循环以展示界面。


    def new_button(self):
        '''创建展示按钮'''"开始检测和显示结果可在此处新添加tk.button"
        tk.Button(self.frame_l, text='开始读取', font=('Arial Black', 12), width=10, height=1, bg='green',
                  command=self.show_picture, relief='ridge').pack()
        # tk.Button(self.frame_l, text='开始检测', font=('Arial Black', 12), width=10, height=1, bg='blue',command=classresnet, relief='ridge').pack()

    def create_canvas(self, file):
        '''用画布展示图片'''
        self.image_file = tk.PhotoImage(file=file)
        canvas = tk.Canvas(self.frame_r, height=500, width=600, bg='gray')
        canvas.create_image(1, 1, anchor='nw', image=self.image_file)
        canvas.pack()
        self.object_list.append(canvas)

    def run(self):
        '''主程序调用'''
        self.window.mainloop()

if __name__ == '__main__':

    w = Window()
    w.new_button()
    w.run()

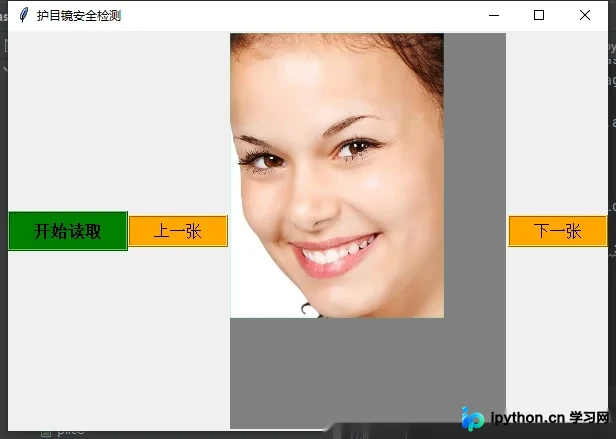

界面运行效果展示

完整的源代码实现


import tkinter as tk
import tkinter.messagebox
import copy
import os
# from glob2 import glob
# import main

"""Graphical User Interface(图形用户接口)"""
def get_picture(dirs):
    '''获得所有图片'''
    picture_list = []
    for dir, dir_abs, files in os.walk(dirs):
        for file in files:
            if file.endswith('.png'):  # 注意检查分析数据格式
                picture_list.append(os.path.join(dir, file))
    return picture_list



class Window:
    button_list = []
    object_list = []

    # for pngfile in glob("F:\\pic\\class-1\\classresnet\\datas\\*.png"):
    #     main.image_demo()
    #     output_dir = "F:\\pic\\class-1\\classresnet\\data\\try"  # 保存截取的图像目录
    #     print('图片获取完成 。。。！')
    #
    # main.classresnet()

    pictures = get_picture("F:\\pic\\class-1\\classresnet\\data\\dangerous")
    file = pictures[0]
    is_show = True
    index = 0
    image_file = ''

    def __init__(self):
        '''创建窗口和frame'''
        self.window = tk.Tk()
        self.window.title('护目镜安全检测')
        self.window.geometry('600x400')
        self.frame = tk.Frame(self.window)
        self.frame.pack()
        self.frame_l = tk.Frame(self.frame)
        self.frame_r = tk.Frame(self.frame)
        self.frame_l.pack(side='left')
        self.frame_r.pack(side='right')
        self.frame_ll = tk.Frame(self.frame_r)
        self.frame_rr = tk.Frame(self.frame_r)
        self.frame_ll.pack(side='left')
        self.frame_rr.pack(side='right')

    def next_picture(self):
        '''下一张图片'''
        self.index = self.pictures.index(self.file)
        self.index += 1
        if self.index < len(self.pictures):
            self.checkout_button()
            self.file = self.pictures[self.index]
            self.create_canvas(self.file)
        else:
            self.index = len(self.pictures) - 1
            tkinter.messagebox.showinfo('提示', '已近是最后一张了')

    def checkout_button(self):
        '''判断列表中是否只有button对象'''
        object_list_copy = copy.copy(self.object_list)
        for ob in self.object_list:
            if ob in self.button_list:
                pass
            else:
                b = object_list_copy.pop(self.object_list.index(ob))
                b.destroy()
        self.object_list = object_list_copy

    def pre_picture(self):
        '''上一页'''
        self.index = self.pictures.index(self.file)
        self.index -= 1
        if self.index >= 0:
            self.checkout_button()
            self.file = self.pictures[self.index]
            self.create_canvas(self.file)
        else:
            self.index = 0
            tkinter.messagebox.showinfo('提示', '已经是第一张了')

    def show_picture(self):
        '''展示图片和翻页按钮'''
        self.file = self.pictures[0]
        if self.is_show:
            self.is_show = False
            self.create_canvas(self.file)
            button1 = tk.Button(self.frame_ll, text='上一张', font=('Arial', 12), width=10, height=1, bg='orange',
                                command=self.pre_picture, relief='ridge', )
            button1.pack()
            button2 = tk.Button(self.frame_rr, text='下一张', font=('Arial', 12), width=10, height=1, bg='orange',
                                command=self.next_picture, relief='ridge', )
            button2.pack()
            self.button_list.append(button1)
            self.button_list.append(button2)
            self.object_list.extend(self.button_list)
        else:
            self.is_show = True
            while self.object_list:
                o = self.object_list.pop()
                o.destroy()

    # def code_button(self):
    #     tk.Button(self.frame_l, text='开始检测', font=('Arial Black', 12), width=10, height=1, bg='blue',
    #               command=main.classresnet, relief='ridge').pack()

    def new_button(self):
        '''创建展示按钮'''"开始检测和显示结果可在此处新添加tk.button"
        tk.Button(self.frame_l, text='开始读取', font=('Arial Black', 12), width=10, height=1, bg='green',
                  command=self.show_picture, relief='ridge').pack()
        # tk.Button(self.frame_l, text='开始检测', font=('Arial Black', 12), width=10, height=1, bg='blue',command=classresnet, relief='ridge').pack()

    def create_canvas(self, file):
        '''用画布展示图片'''
        self.image_file = tk.PhotoImage(file=file)
        canvas = tk.Canvas(self.frame_r, height=500, width=600, bg='gray')
        canvas.create_image(1, 1, anchor='nw', image=self.image_file)
        canvas.pack()
        self.object_list.append(canvas)

    def run(self):
        '''主程序调用'''
        self.window.mainloop()

if __name__ == '__main__':


    w = Window()
    w.new_button()
    w.run()
